Tyler, Texas · Smith County

ADA Curb Ramps Tyler TX - Commercial Sidewalks, Curb & Gutter

Concrete where the public walks is checked against numbers, and a ramp that misses them gets torn out. We build curb ramps, accessible routes, commercial sidewalks, curb and gutter and commercial driveway approaches in Tyler to the City's standard details, the Texas Accessibility Standards and the 2010 ADA Standards.

Request a Quote Call (903) 587-4111

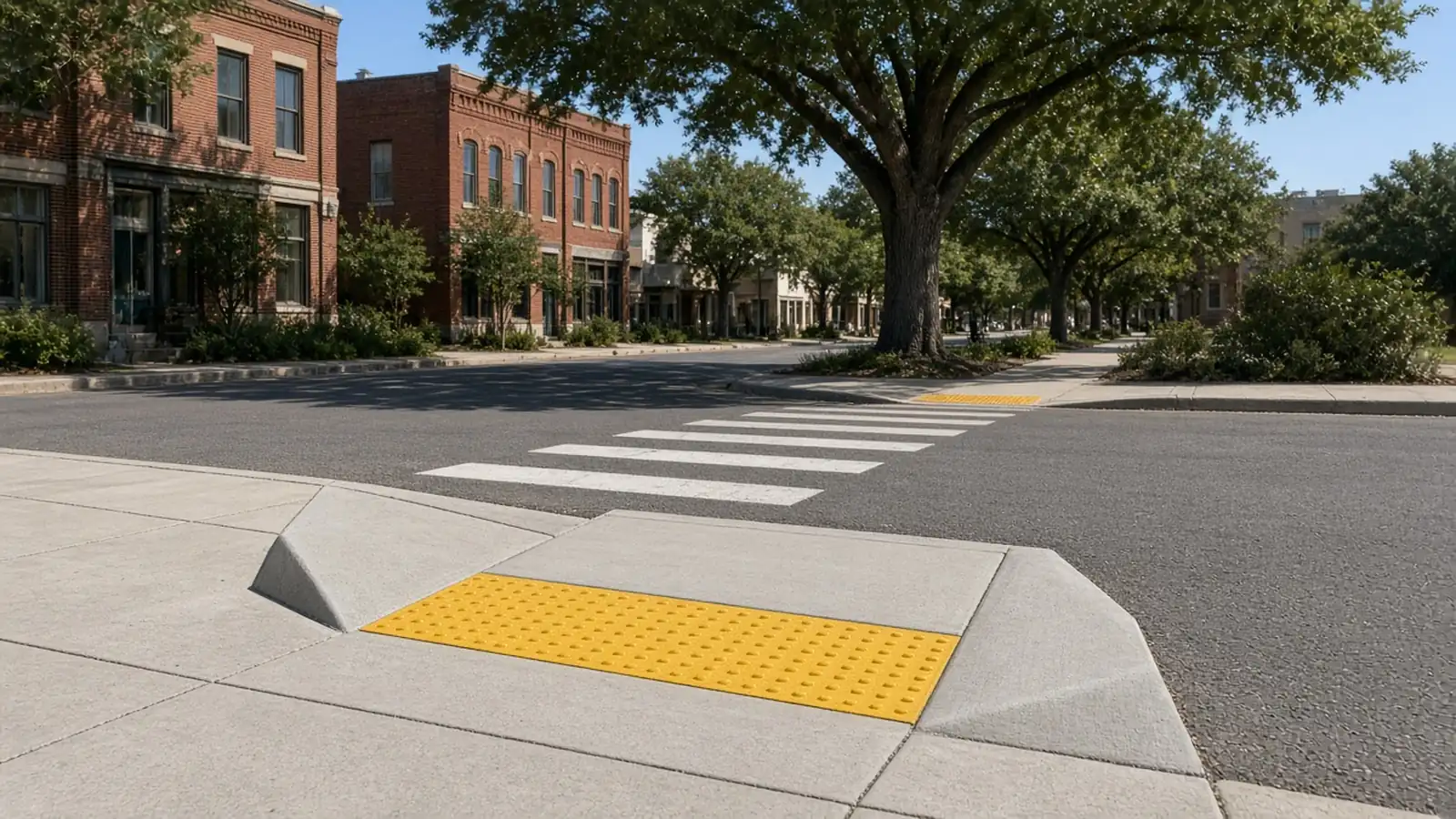

New concrete curb ramp with flared sides and a yellow truncated dome panel at a downtown crosswalk lined with brick buildings and a large oak

Request a site visit and written quote

Rather talk it through? Call anytime: (903) 587-4111

Curb Ramps

The City of Tyler's standard detail for a public access ramp with flares limits the ramp slope to 8.333 percent, which is the same as the ADA's 1:12. It calls for a detectable warning surface at least 24 inches deep across the full width of the ramp. The City's paving notes require detectable warnings that meet current Texas Department of Licensing and Regulation standards, and say ramps follow TxDOT specifications and details except where the City notes otherwise. Under the 2010 ADA Standards, cross slope can't exceed 1:48, flared sides can't exceed 1:10, and the landing at the top must be at least 36 inches long. Our crews check every ramp form with a digital level before concrete is ordered.

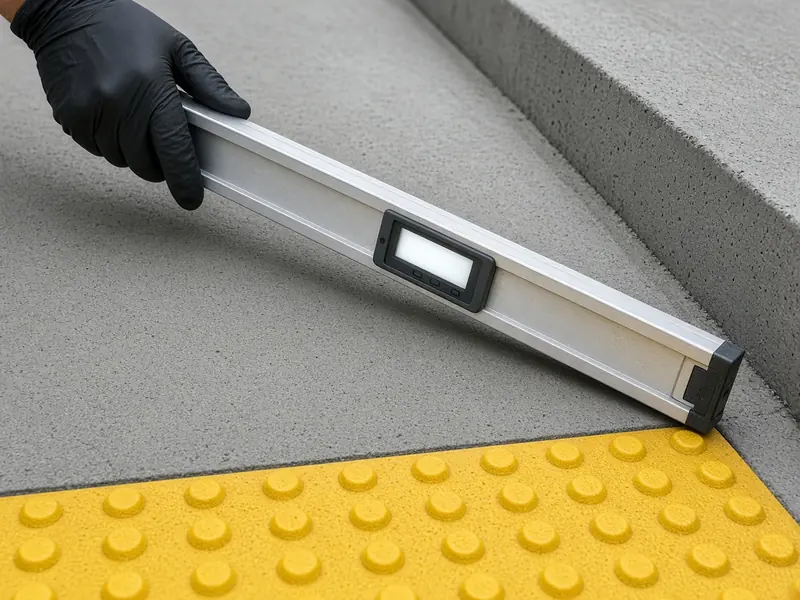

Gloved hand laying a digital level along the slope of a new concrete curb ramp above a yellow truncated dome panel

TDLR Review on Bigger Projects

TDLR's Architectural Barriers FAQ says a project costing $50,000 or more must be registered and submit construction documents for review, while smaller projects must still comply with the Texas Accessibility Standards. Registered projects get a plan review by a Registered Accessibility Specialist before inspection. On right-of-way jobs, TDLR counts only the square footage of sidewalks, curb ramps and related pedestrian elements. We work with the owner's RAS and build to the reviewed plans.

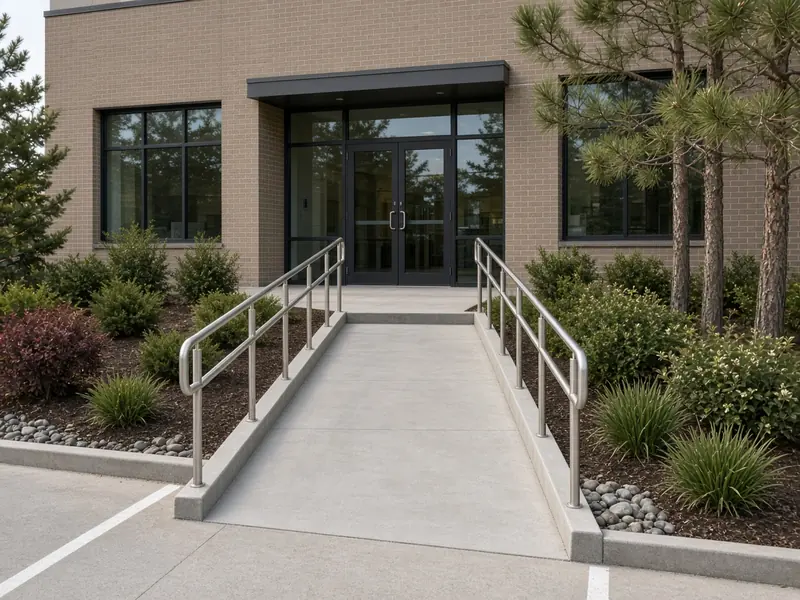

Sloped concrete accessible walkway with steel handrails on both sides leading from a parking area to the glass entry of an office building

Commercial Sidewalks and Curb and Gutter

City code requires a City license, a bond and a permit before excavating for sidewalks, curb, gutter or driveways in a public place, and the work has to match the City's lines, grades and standard details. Those details call for:

Sidewalks: 3,000 psi concrete, 4 inches thick and 6 through driveways, with a cross slope of 2 percent or less.
Curb and gutter: a 6-inch curb, ½-inch expansion joints every 50 feet and control joints every 10 feet.
Extensions: #3 dowels set at least 4 inches into existing curb.

Under Sec. 10-218, non-residential property needs a continuous 6-inch raised concrete curb along the right-of-way except at driveways. The City lists a commercial driveway permit at $50.

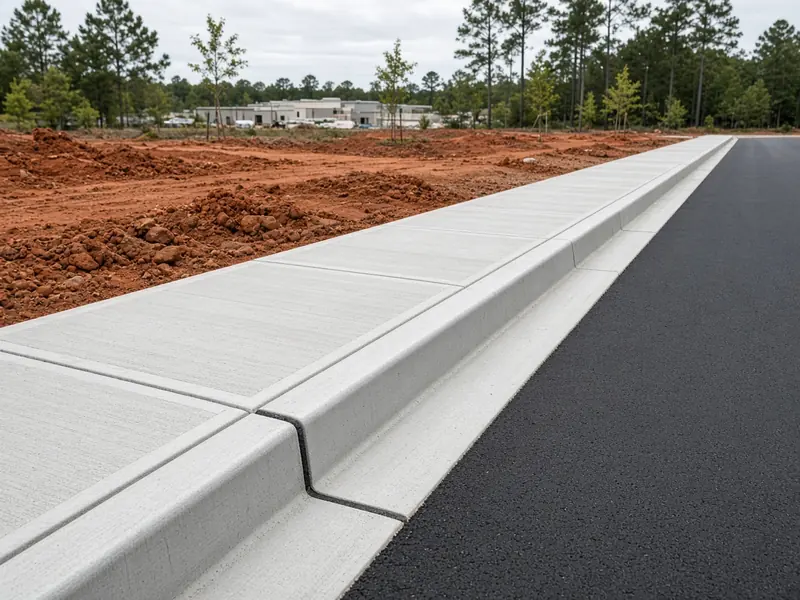

Long run of new concrete curb and gutter beside fresh asphalt, with a new commercial sidewalk behind it and red clay not yet sodded

Driveways That Cross the Walk

Sec. 10-211 requires every driveway to let pedestrians cross the sidewalk in line with the Texas Accessibility Standards and the ADA, and limits the slope across the right-of-way to 10 percent. Lot work behind the curb is on concrete parking lots, and plazas and site walks are on commercial concrete flatwork.

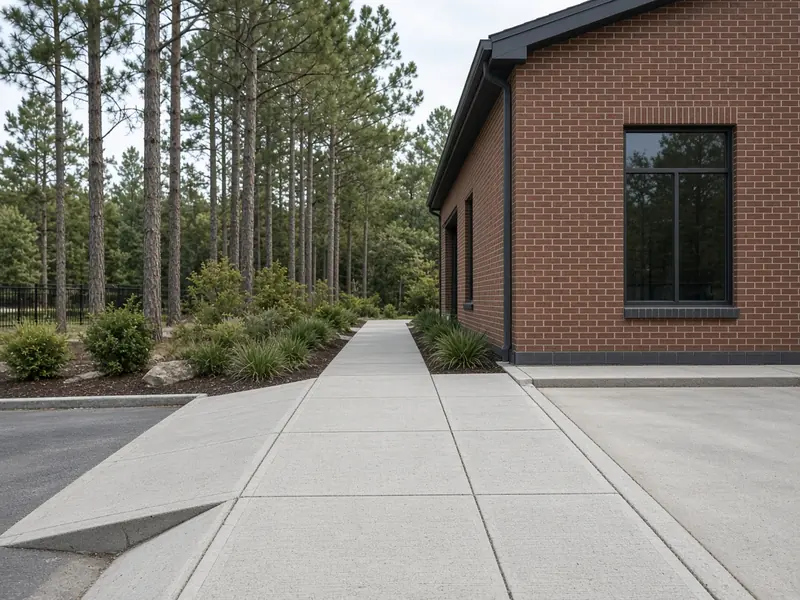

Commercial concrete sidewalk running level across a driveway entrance beside a brick building, with pines along the walk

Get a Ramp or Sidewalk Quote

Send the plans, the TDLR project number if there is one, or the site address. Call (903) 587-4111 anytime or use the quote form.

Back to Tyler Superior Concrete for every concrete service we offer in Tyler.

Rolled site plans held down by a tape measure and a thermos on a truck tailgate at a commercial jobsite with a new curb ramp and cones behind
